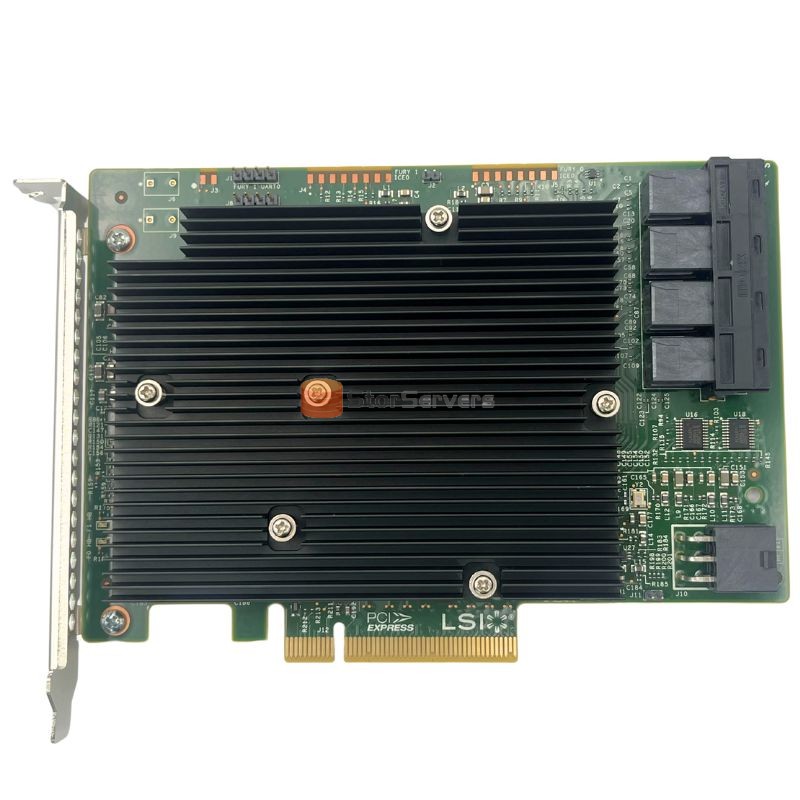

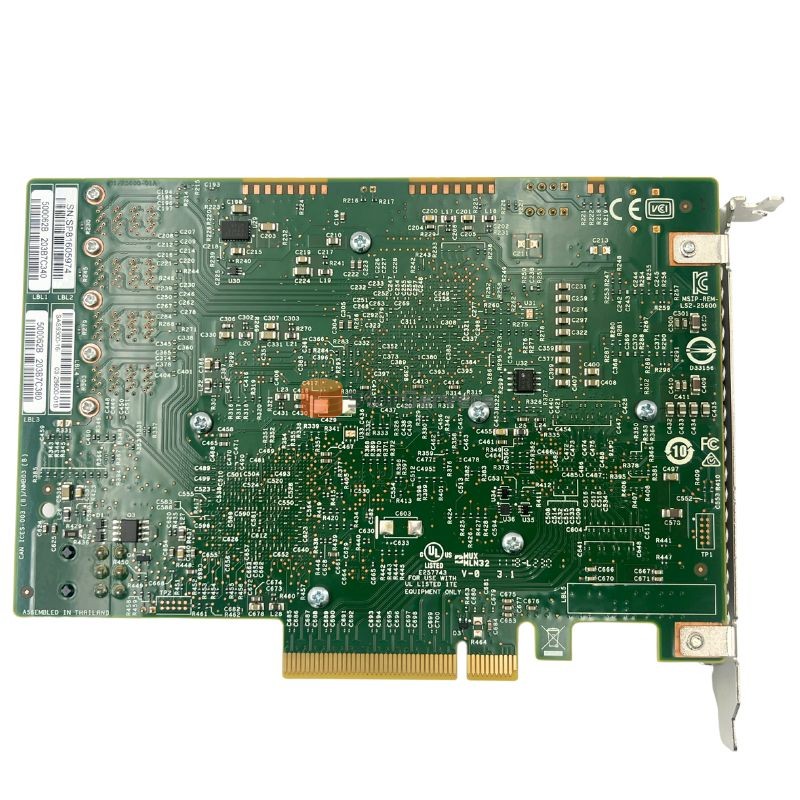

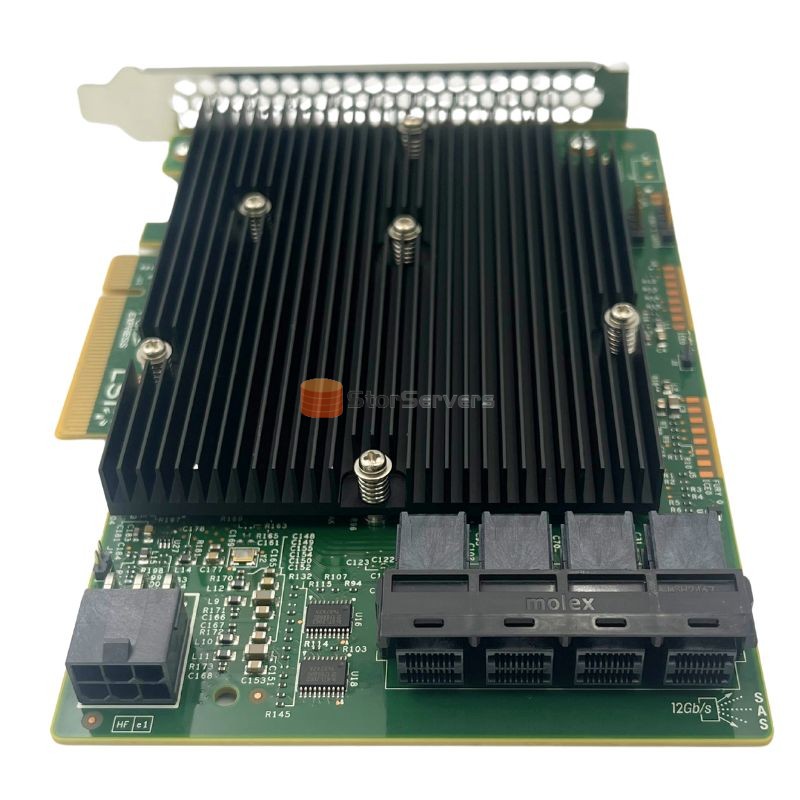

9300-16i SAS/SATA 12Gb HBA PCIe 3.0 x8
Applications
The LSI 9300-16i is a high-performance 12Gbps SAS/SATA RAID controller that serves as the core component of mid to high end storage systems with 16 high-speed ports, 1GB ECC cache, and PCIe 3.0 interface. It supports large capacity hard drives (over 10TB), complete RAID functionality, and flexible cache protection solutions, making it particularly suitable for enterprise NAS or server environments that require high bandwidth and reliability. It is also an ideal expansion card choice for FlyCow NAS paired with SAS hard drives.
LSI SAS 9300-16i PCI Express (PCIe) to Serial Attached SCSI (SAS) Host Bus Adapter (HBA), abbreviated as LSI 12Gb/s SASHBA, provides high-performance internal storage connectivity for servers and workstations. The LSI 12Gb/s SAS HBA provides 16 12Gb/s SAS connection channels and is equipped with 8 PCIe 3.0 8Gb/s connection channels. LSI 12Gb/s SAS HBA based on Fusion MPT ™ The LSI SAS 3008 controller of the architecture integrates the latest enhanced features of PCIe 3.0 technology and 12Gb/s SAS technology
Key Features
- Implement two LSI SAS 3008 eight port 12Gb/s SAS to PCIe 3.0 controllers
- Supports eight channel full duplex PCIe 3.0 performance
- Supports sixteen internal 12Gb/s SATA+SAS ports
- Supports SATA link speeds of 3Gb/s and 6Gb/s
- Supports SAS link rates of 3Gb/s, 6Gb/s, and 12Gb/s
- Provide four x4 internal mini SAS HD connectors (SFF-8643)
- Support passive copper cables
- Supports up to 1024 SATA or SAS terminal devices
- Equipped with a full height bracket
- Provide two heartbeat LEDs
Specification
| Model |
9300-16i |
| Form factor |
Standard Half Height |
| Host Connector |
PCIe 3.0 x8 |
| Port interface |
12 Gb SAS |
| Number of ports |
16 |
Port connectors
|
Mini SAS HD SFF8643 Four (x4) |
Drive interface
|
SAS, SATA |
Lead time
| Quantity (pieces) |
1-10 |
10-60 |
>60 |
| Lead time (days) |
3 |
3-5 |
To be negotiated |
About US
About us
STOR TECHNOLOGY LIMITED founded in 2007, focusing on providing hardware solutions for cloud computing ,cloud storage,data centre, security monitor, customized server and other fields. Our main products are Raid Card, HBA Card,Fiber Card,Network Card,Hard Drives,CPU. We can provide long-term good after sales service for customers. ODM orders Welcome!
Our Advantages
-
-
High Quality
Good quality control System,competitive cost control system.
-
Low MOQ
Large production capacity with lowest MOQ.
-
-
-
Shipping & Packing
- Packing: standard export packing or customized packing
- Shipping Ways:
By express (3-7 days via DHL, UPS, TNT, FEDEX; 5-10 day Via EMS)
By air or sea or combined tranportation
FAQ
Q1: What payment method do you accept?
A1: Trade assurance, T/T, Western Union
Q2: What is the mininum order Quantity(MOQ）?
A2: We can sell one piece for testing.
Q3: When is the lead time of your products?
A3: we have stock, we can provide fast delivery within 2~3 days for 10pcs.
Q4: How about the warranty service?
A4: 3 year for warranty free.
