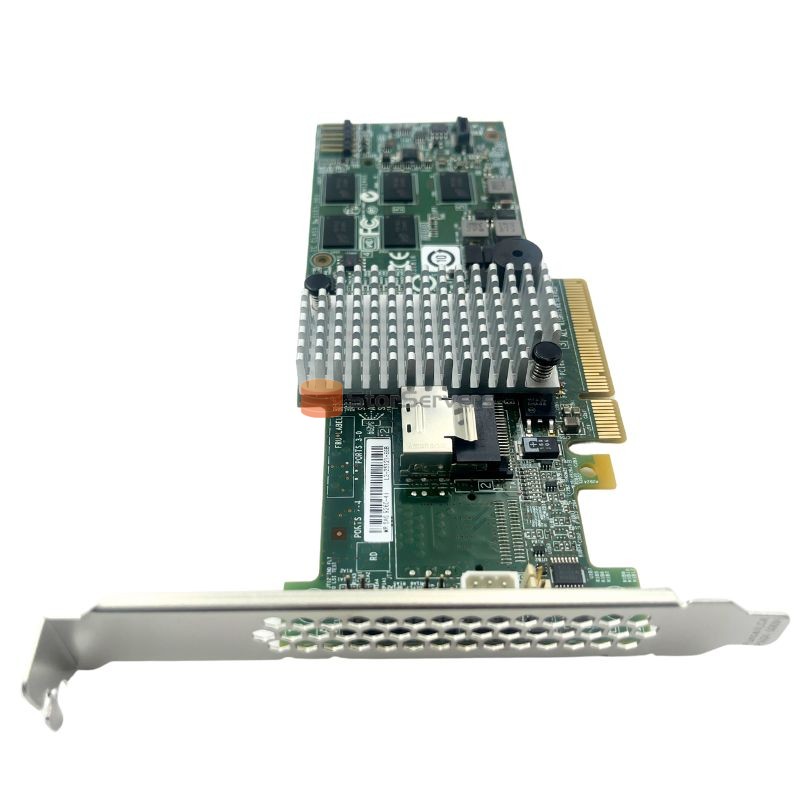

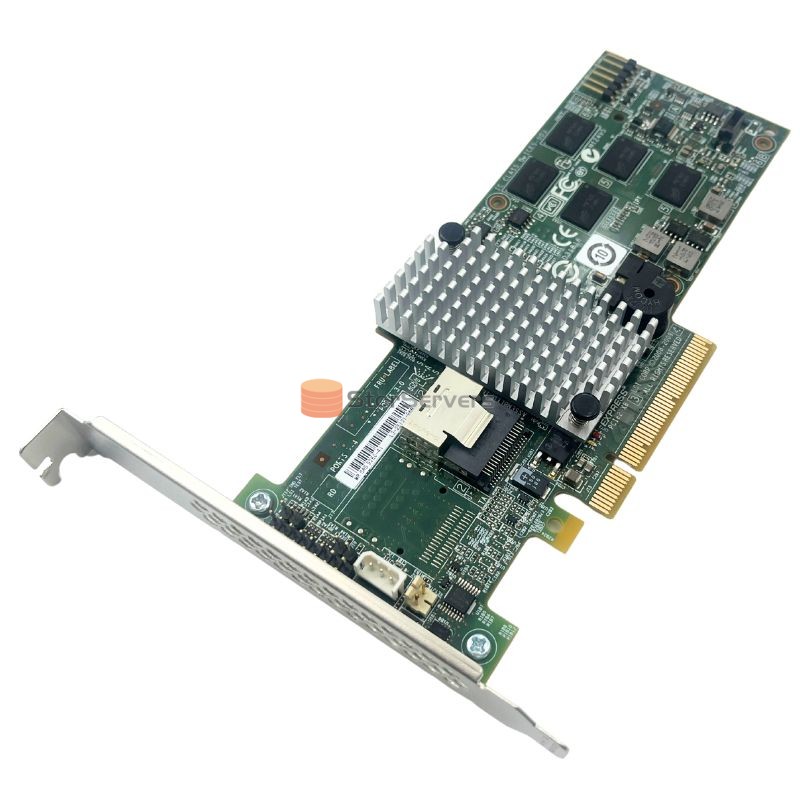

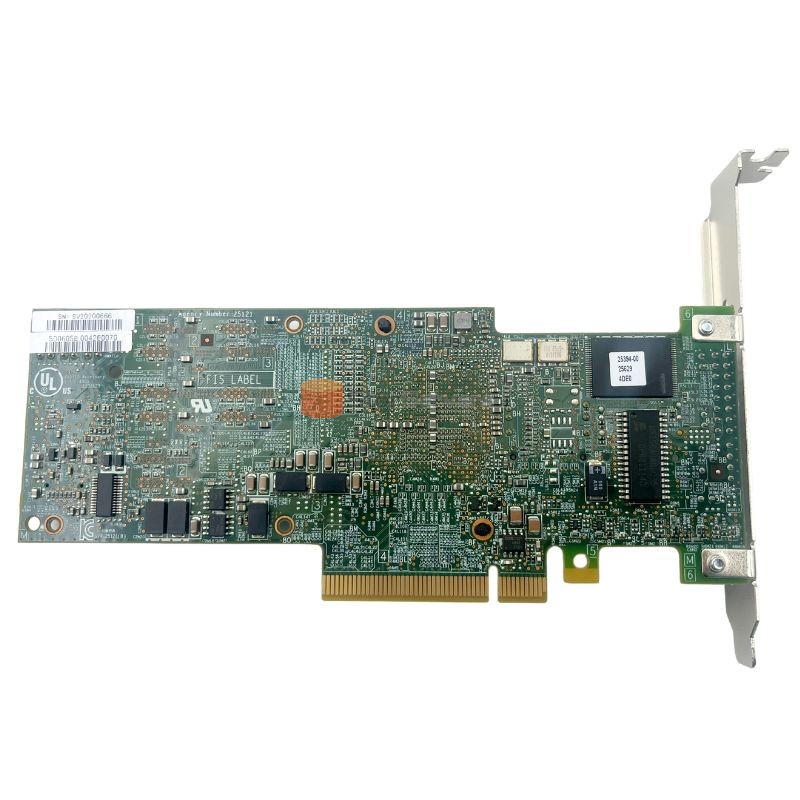

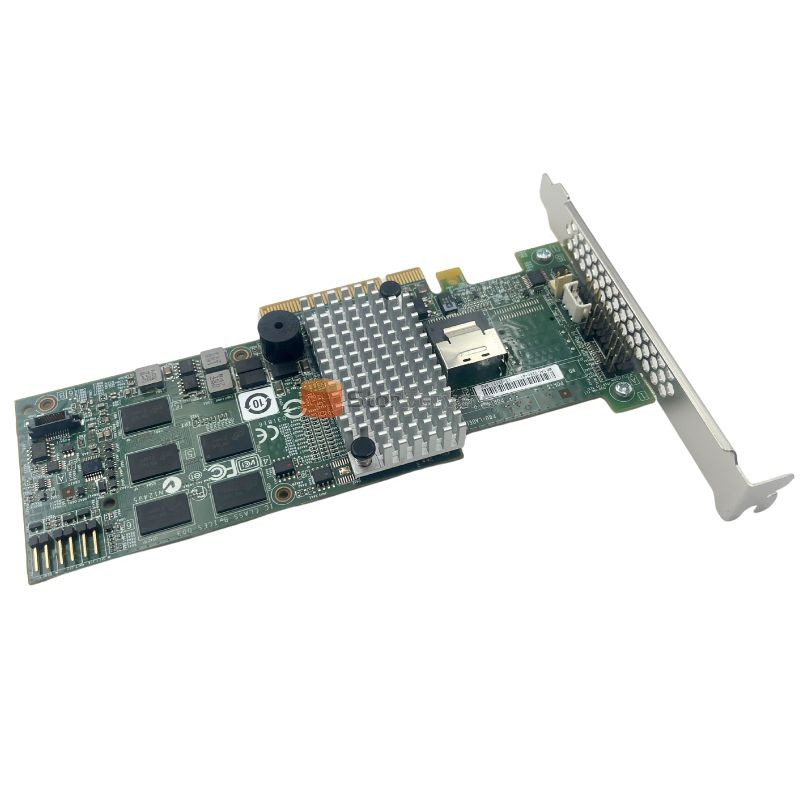

SAS SATA RAID controller 9260-4i LSI00197
Applications
he MegaRAID SATA+SAS controller provides a new level of reliability, availability, and performance for enterprises facing unprecedented data growth driven storage challenges. The MegaRAID SAS 9260-4i has a data transfer rate of up to 6Gb/s per port, bringing users new features and improved performance, while continuing to support all the functions of the previous generation 3Gb/s SATA+SAS. This value series controller is highly suitable for cost sensitive 1U and 2U server applications, utilizing the latest on-chip RAID technology, complying with PCI Express 2.0 specifications, and providing additional data security through SafeStore encryption services
Key Features
• Four internal 6Gb/s SATA+SAS ports
• 1 Mini SAS internal connector (SFF-8087)
• LSI SAS 2108 6Gb/s on-chip RAID -800MHz PowerPC
• 512MB 800MHz DDRII cache
• PCI Express 2.0 provides faster signal transmission for high bandwidth applications
• Supports 3Gb/s and 6Gb/s SATA and SAS hard drives
Specification
| Model |
9260-4i |
| Adapter Type |
SAS SATA RAID |
| Storage Controller |
LSI00197 |
| Connectors |
1 Mini SAS internal connector (SFF-8087) |
| PCIe Host Interface |
PCIe 2.0 x8 |
| RAID Levels |
0, 1, 5, 6 |
Form Factor
|
MD2 thin
|
Ports
|
4
|
Lead time
| Quantity (pieces) |
1-10 |
10-60 |
>60 |
| Lead time (days) |
3 |
3-5 |
To be negotiated |
