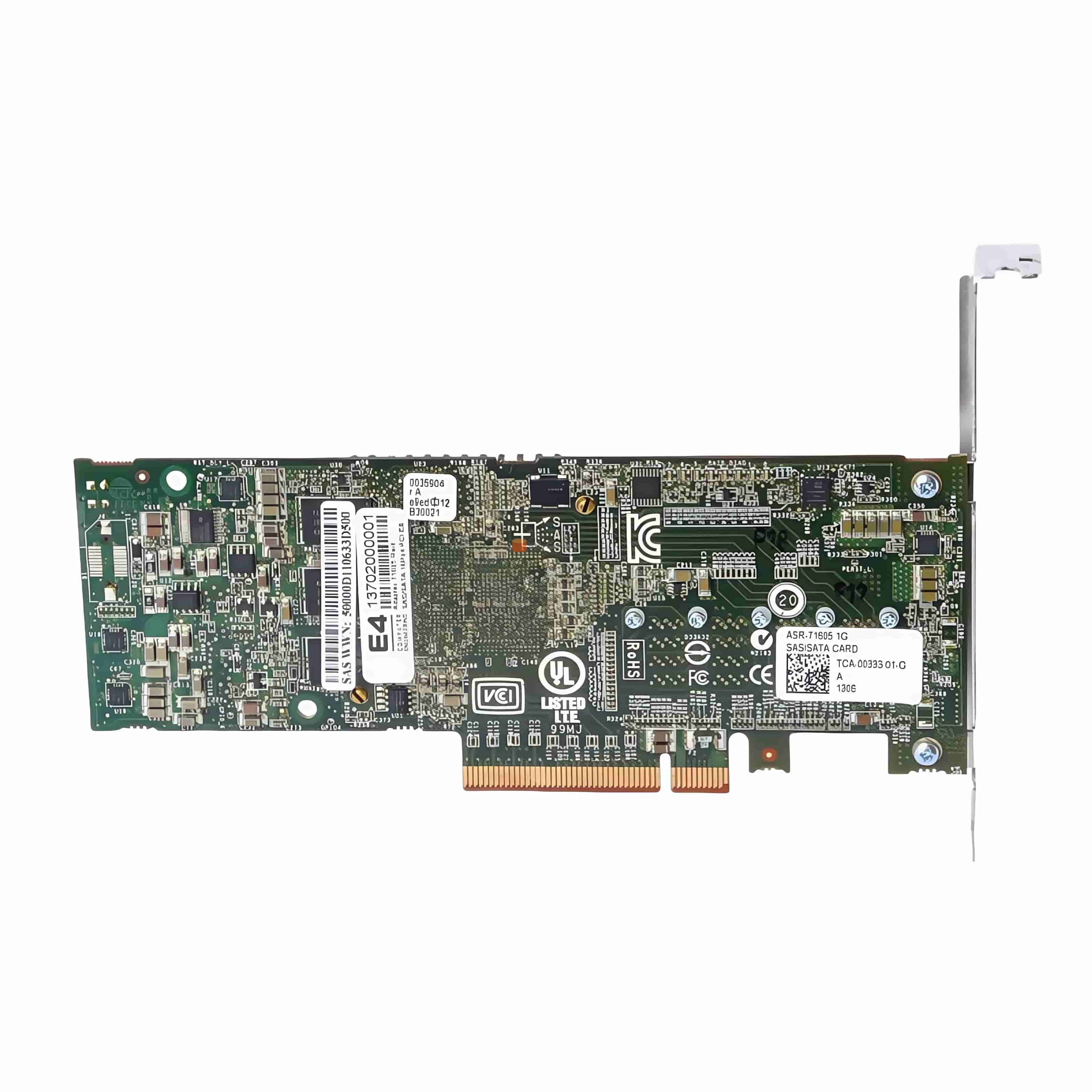

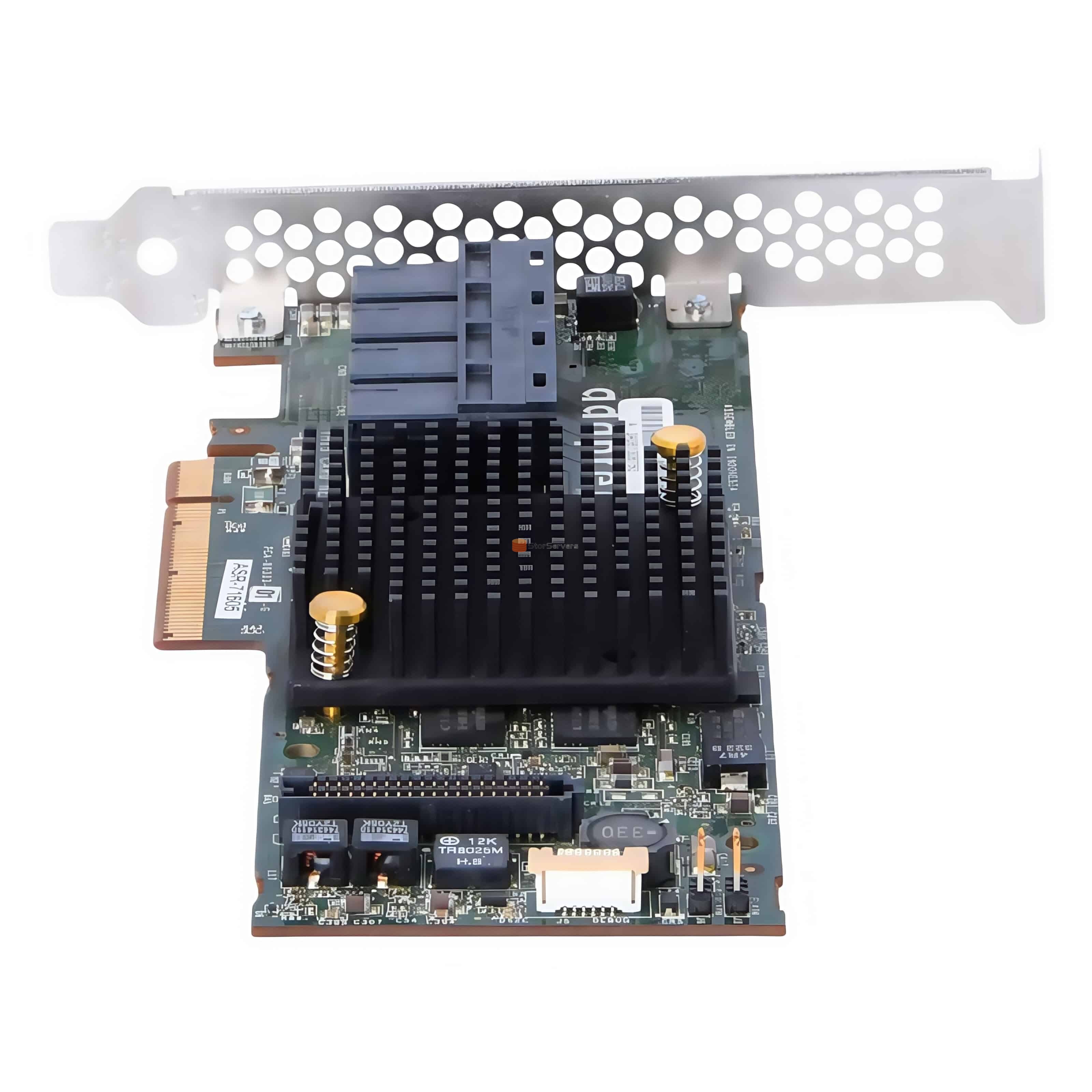

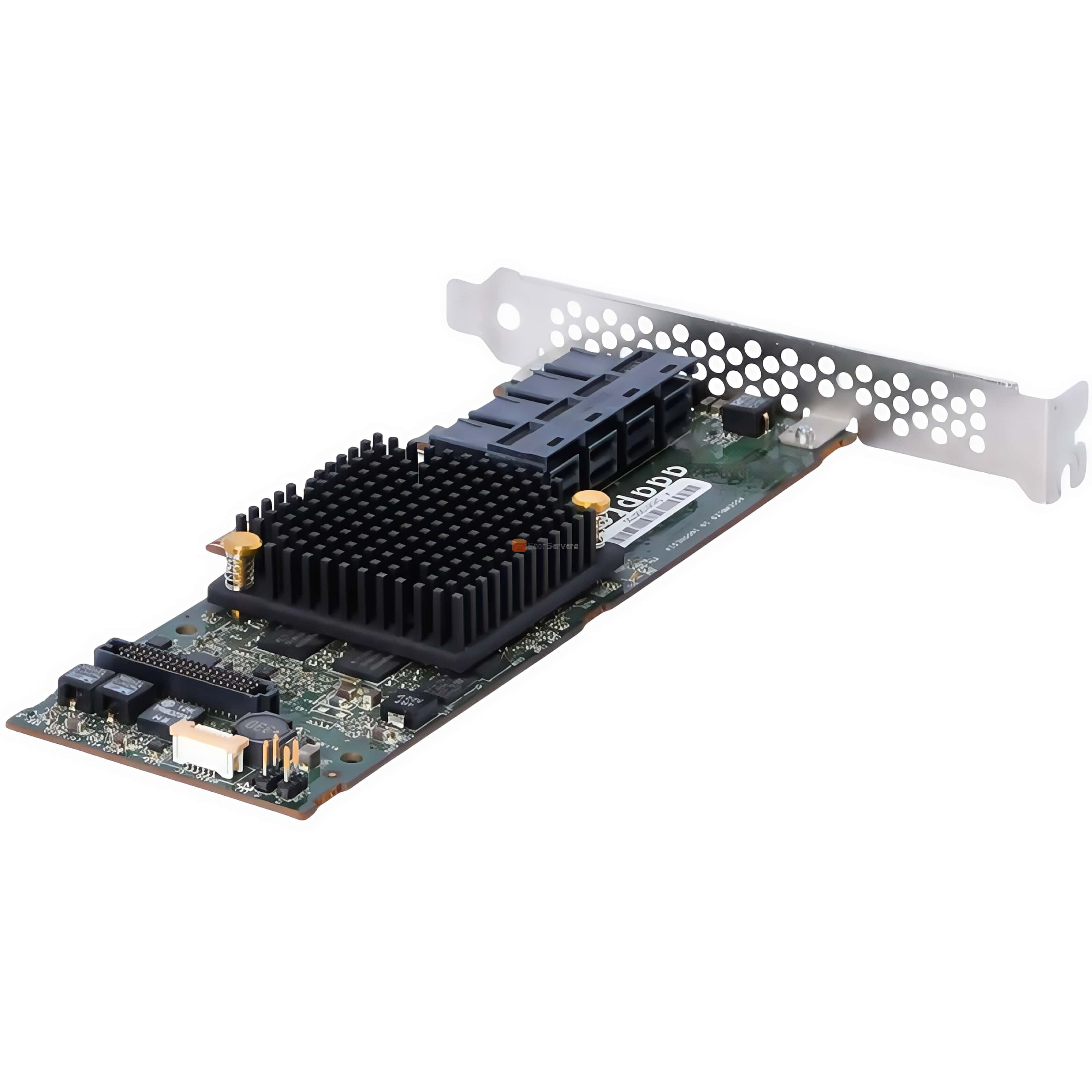

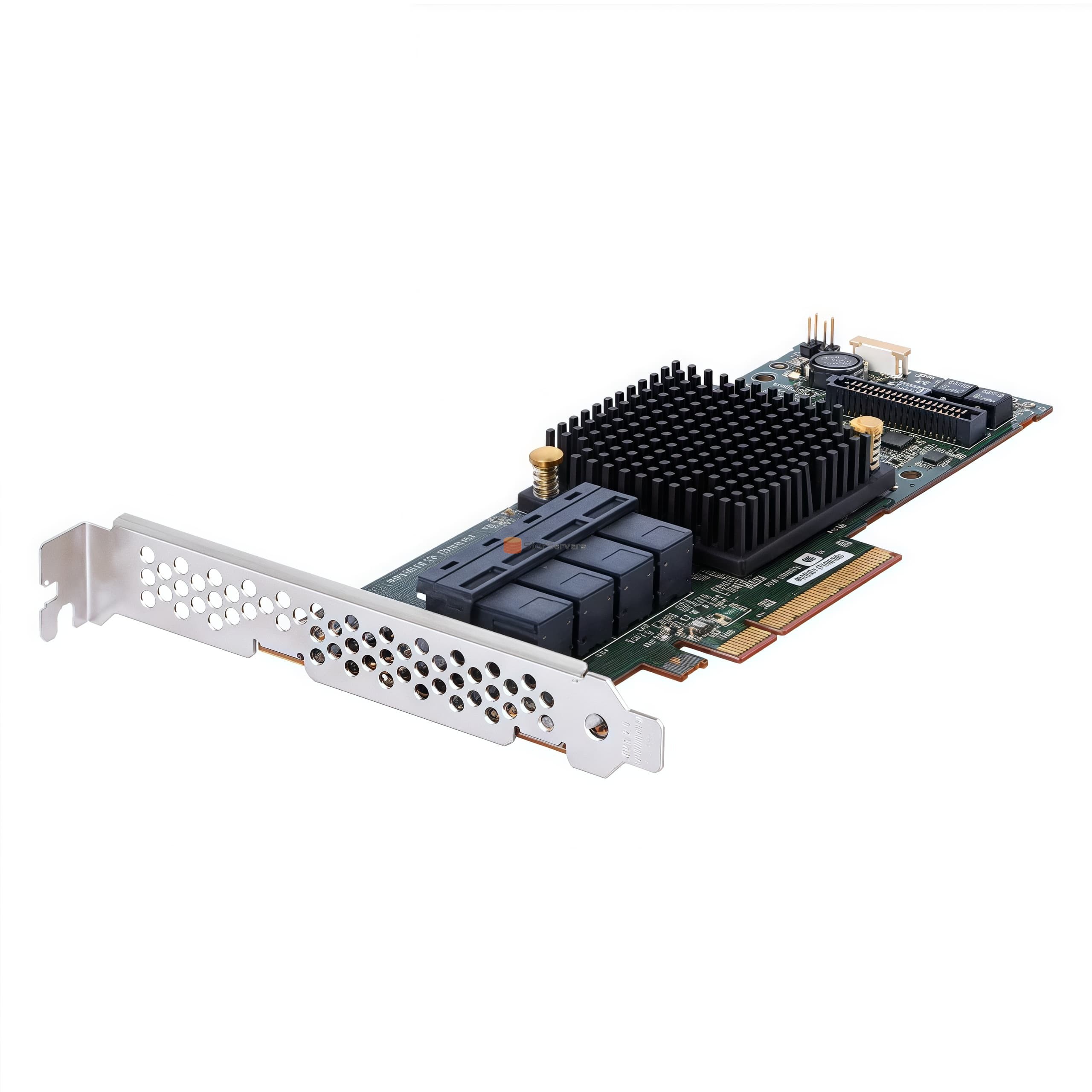

SAS SATA RAID Controller ASR-71605 2274400-R PM8015
Applications
Adaptec ASR-71605 2274400-R 6Gb/s PCIe Gen3 x8 16 port internal SAS/SATA RAID adapter. The PMC Adaptec 71605 SAS/SATA 6Gb/s PCIe Gen3 RAID adapter reshapes the slim/MD2 form factor, with twice the number of ports and performance compared to competitors. We can provide users with excellent performance, advanced data protection, maximum scalability, and the lowest total cost of ownership for enterprise level, high-density server applications.
Key Features
• 16 internal 6Gb/s SAS+SATA ports
• 4 × SFF-8643（Mini-SAS HD）
• RAID levels 0、1、1E、5、6、10、50、60
• PM8015 6Gb/s Tri Mode ROC chip
• 1024MB DDR2 667MHz Cache
Specification
| Model |
ASR-71605 |
| Adapter Type |
SATA+SAS RAID |
| Storage Controller |
PM8015 |
| Connectors |
4 × SFF-8643（Mini-SAS HD） |
| PCIe Host Interface |
PCIe 3.0 x8 |
| RAID Levels |
0、1、1E、5、6、10、50、60 |
Form Factor
|
6.6 inches × 2.535 inches
|
Ports
|
16 |
Lead time
| Quantity (pieces) |
1-10 |
10-60 |
>60 |
| Lead time (days) |
3 |
3-5 |
To be negotiated |
