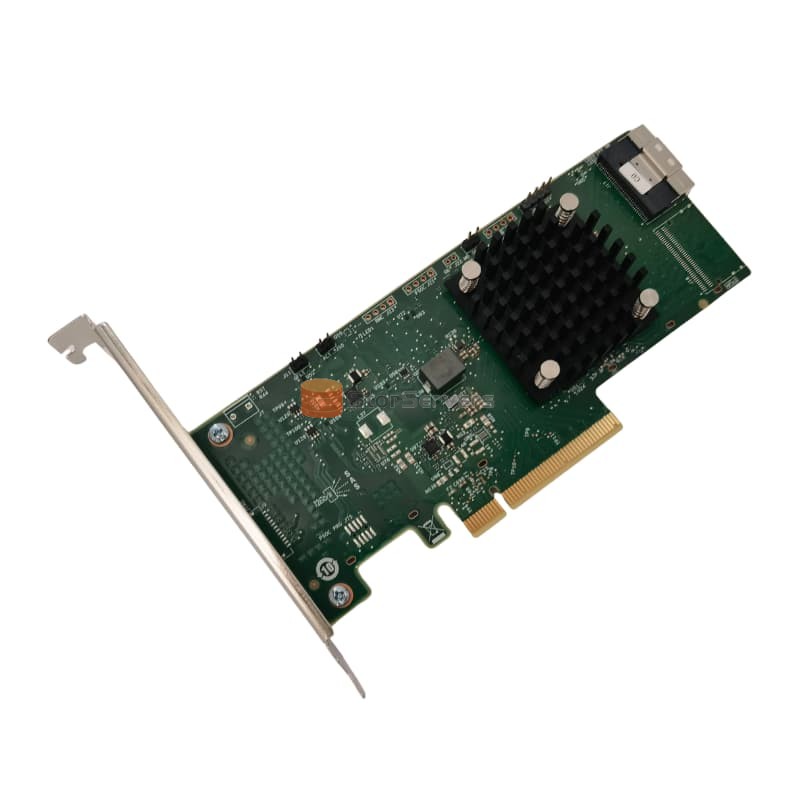

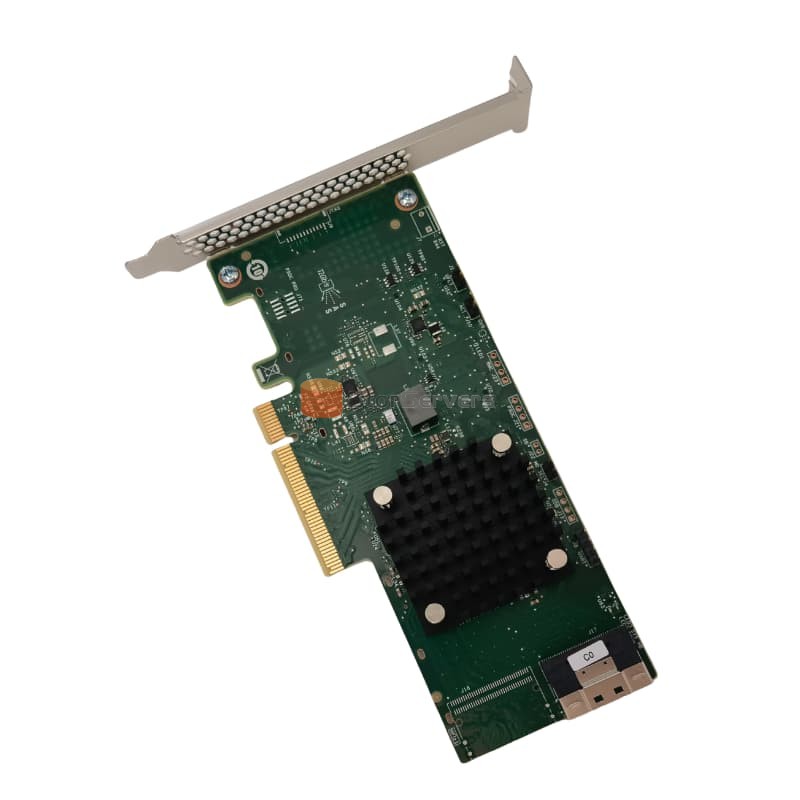

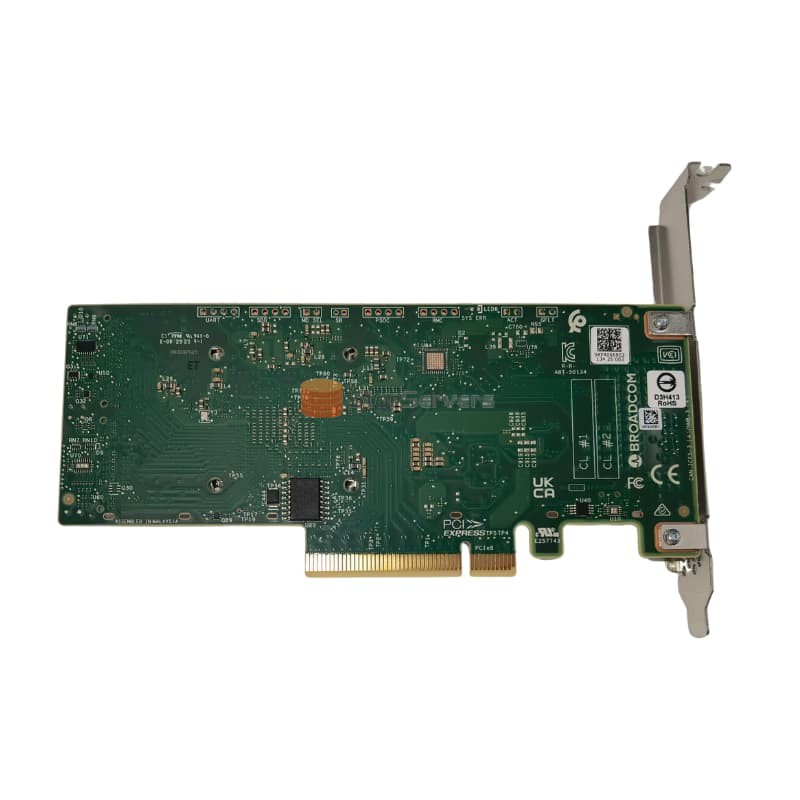

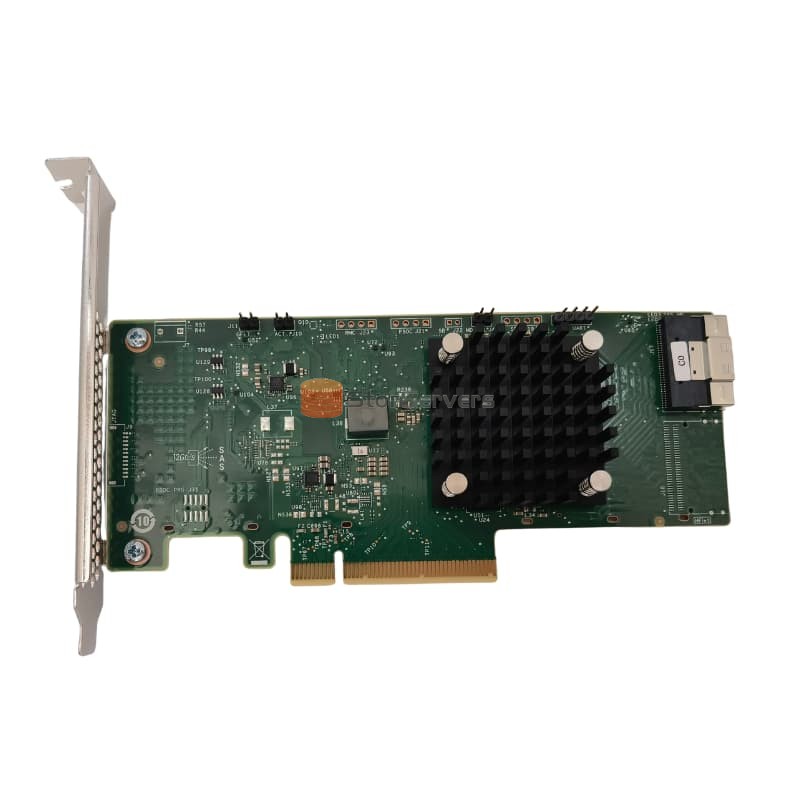

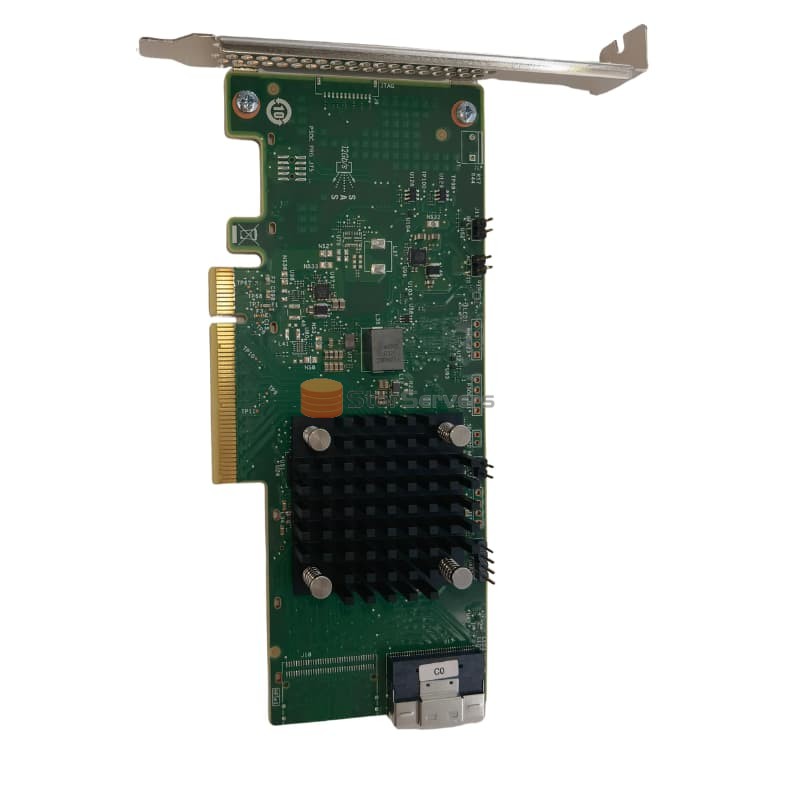

SAS SATA RAID Controller 9520-8i SAS3808 05-50134-25
Applications
The MegaRAID ™ 9520-8i adapter provides a reliable storage solution based on the Broadcom ® second-generation PCIe Gen 4.0 Tri-Mode SAS3808 I/O controller. Leveraging the MegaRAID iMR entry RAID firmware, the 9520-8i supports JBOD mode, RAID 0, 1, and 10 without requiring the Reserved Memory Region Reporting (RMRR) structure. This means that upon startup, the 9520-8i does not claim host memory for the RAID functions and other background operations. Due to security concerns, platform limitations on using RMRR are always increasing, so the 9520-8i instead uses the SAS3808 on-chip memory to carry out the RAID and other necessary operations. This also allows for easy integration into system architectures that do not have a memory reservation capability to support a traditional iMR solution, such as the 9540-8i.
Key Features
• Can connect up to 16 SAS/SATA devices
• 1×SFF-8654×8（Mini SAS HD）
• 12Gb/s SAS/SATA
• SAS3808 12Gb/s Tri Mode ROC chip
• No cache
Specification
| Model |
9520-8i |
| Adapter Type |
SATA+SAS RAID |
| Storage Controller |
SAS3808 |
| Connectors |
1×SFF-8654×8（Mini SAS HD）
|
| PCIe Host Interface |
PCIe 4.0 x8 |
| RAID Levels |
0, 1, 10 and JBOD |
Form Factor
|
6.6 inches x 2.7 inches
|
Ports
|
8 |
Lead time
| Quantity (pieces) |
1-10 |
10-60 |
>60 |
| Lead time (days) |
3 |
3-5 |
To be negotiated |
