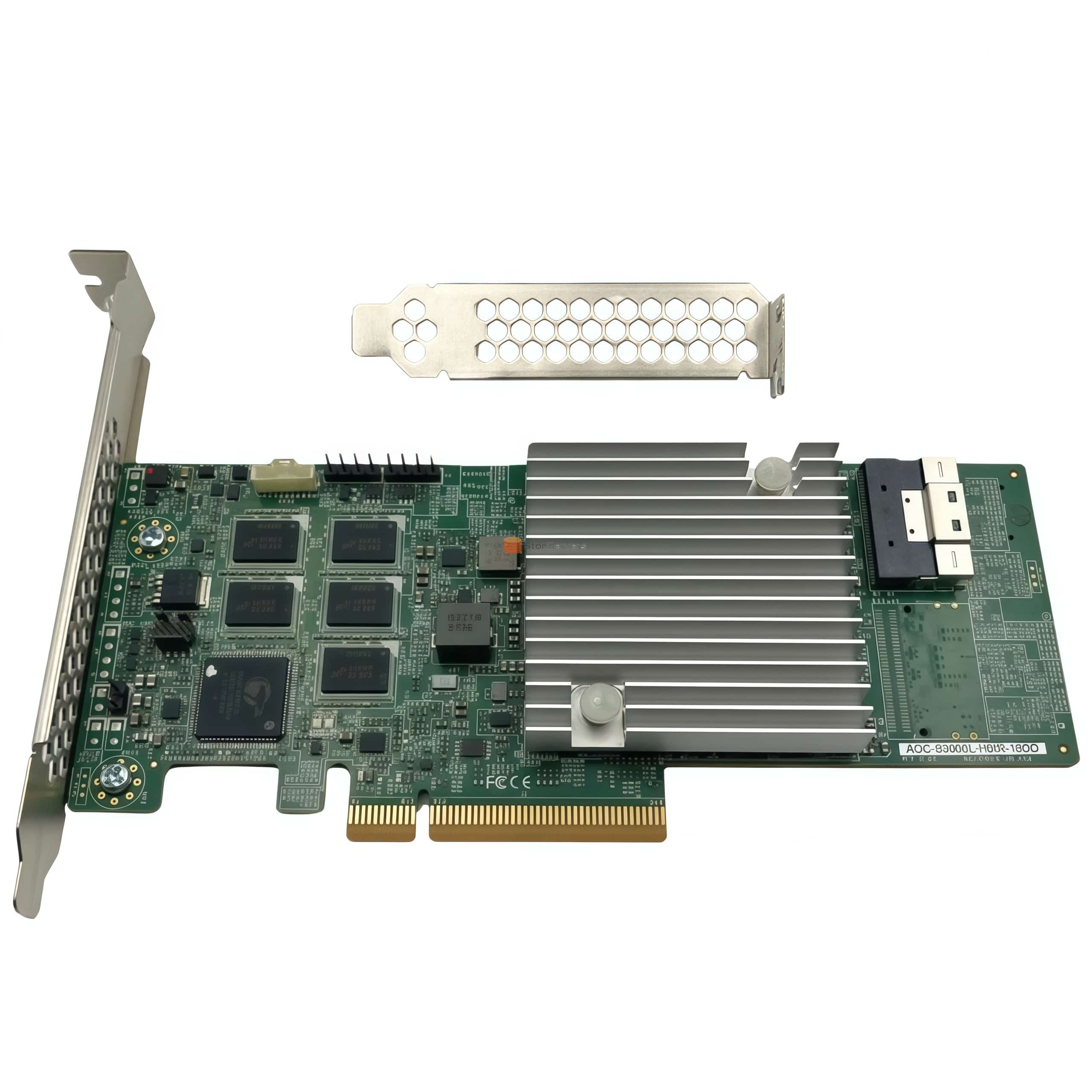

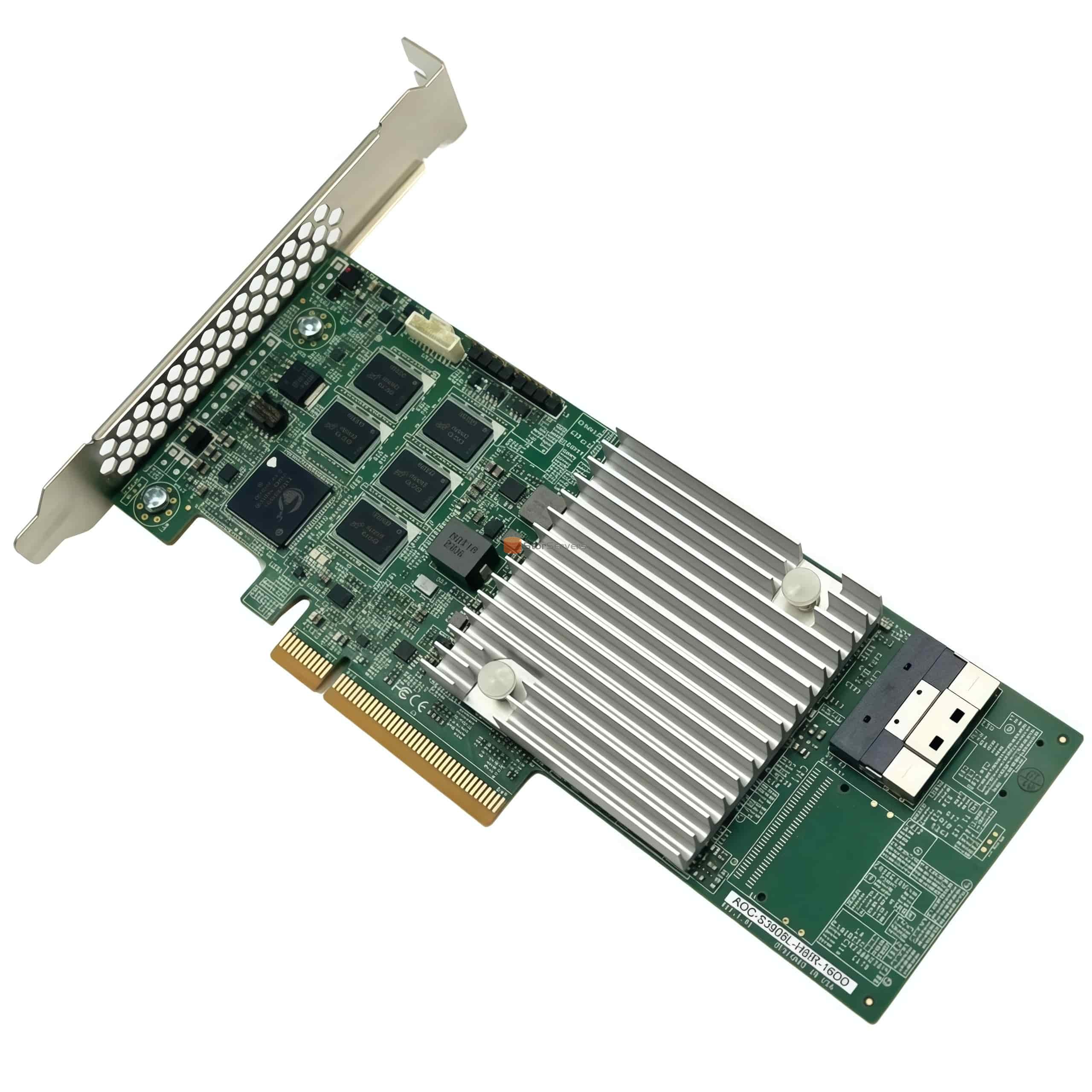

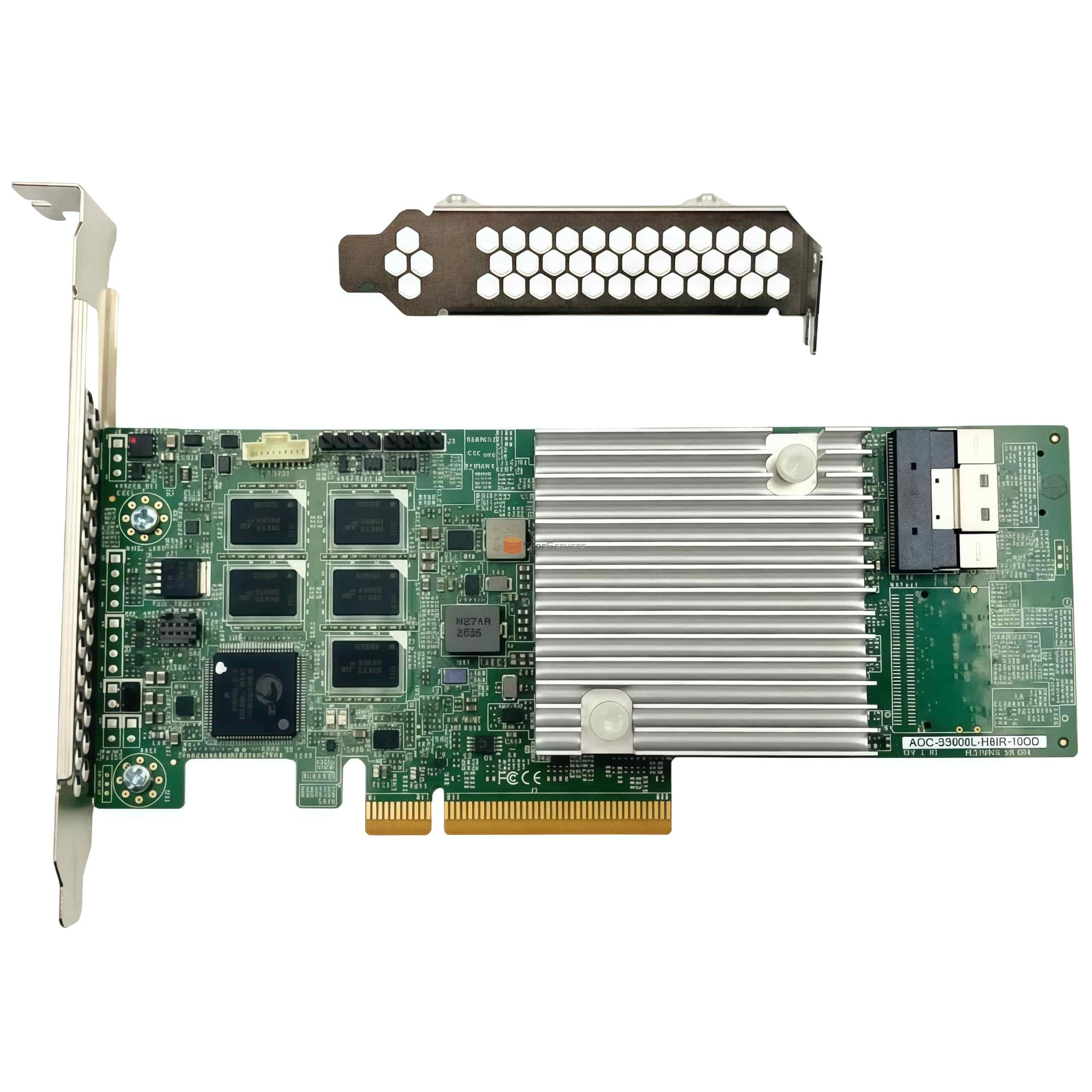

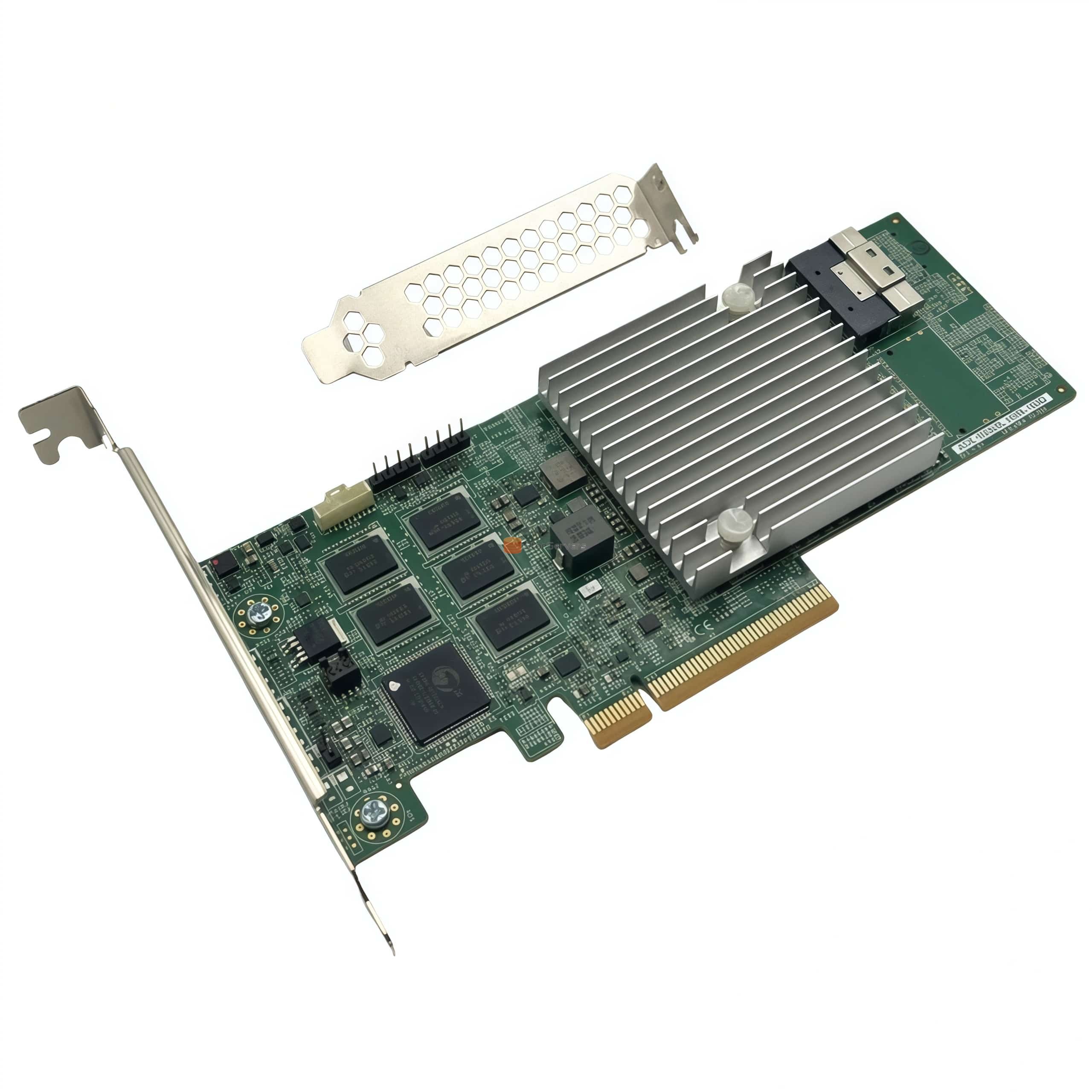

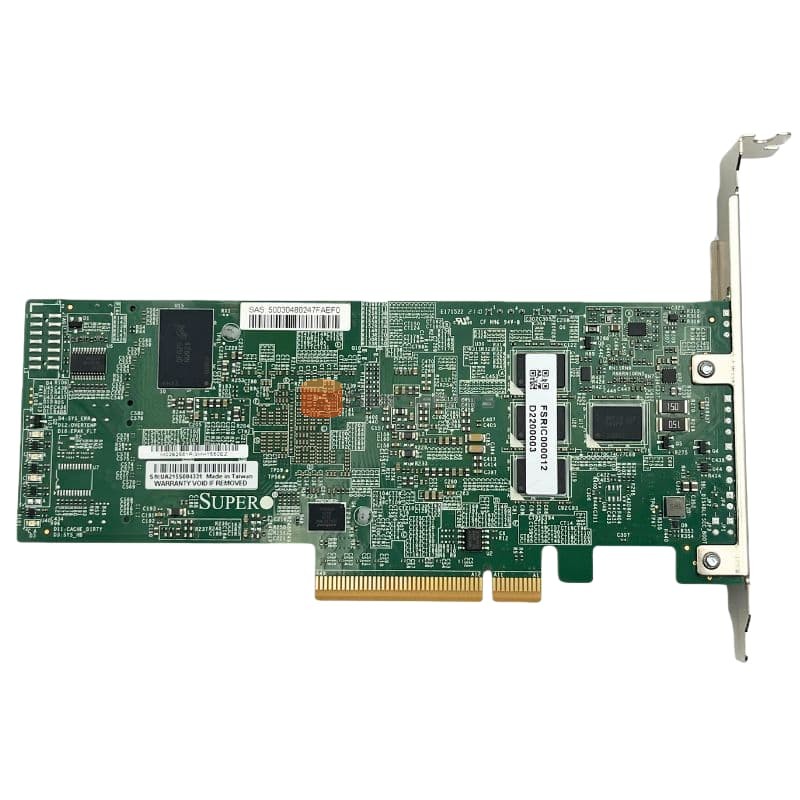

SAS SATA RAID Controller AOC-S3908L-H8IR-16DD SAS3908
Applications
The Supermicro MegaRAID Low Profile AOC-S3908L-H8iR features 8 internal SAS connectors and AOC-S3916L-H16iR features 16 internal SAS connectors for high-performance storage connectivity. These RAID cards are built on the Broadcom SAS IC technology and proven MegaRAID technology unless mentioned otherwise here. They address the growing demand for increased data throughput and scalability requirements across the enterprise-class server platforms. With high performance RAID architecture, including hardware RAID 5 and 6, these new RAID controller cards support high capacity storage applications. They deliver cost-effective storage solutions using SATA drives and maximum performance and reliability with SAS drives.With the option of the BTR-CVPM05 SuperCap/TFM unit, it provides cached data protection and allows system builders to protect cached data even during the most catastrophic system failures.Using expander backplanes, they support up to 16, 32 & 240 drives (depending on SKU) w/ RAID 0, 1, 5, 6, 10, 50 and 60.
Key Features
• Can connect up to 240 SAS/SATA devices
• 1×SFF-8643×8（Mini SAS HD）
• 12Gb/s SAS/SATA
• SAS3908 12Gb/s Tri Mode ROC chip
• 8GB DDR4 onboard cache memory – 2666MHz
Specification
| Model |
AOC-S3908L-H8IR-16DD |
| Adapter Type |
SATA+SAS RAID |
| Storage Controller |
SAS3908 |
| Connectors |
1×SFF-8643×8（Mini SAS HD）
|
| PCIe Host Interface |
PCIe 4.0 x8 |
| RAID Levels |
0, 1, 5, 6, 10, 50, 60, JBOD |
Form Factor
|
6.6 inches x 2.7 inches
|
Ports
|
8 |
Lead time
| Quantity (pieces) |
1-10 |
10-60 |
>60 |
| Lead time (days) |
3 |
3-5 |
To be negotiated |
About US
About us
STOR TECHNOLOGY LIMITED founded in 2007, focusing on providing hardware solutions for cloud computing ,cloud storage,data centre, security monitor, customized server and other fields. Our main products are Raid Card, HBA Card,Fiber Card,Network Card,Hard Drives,CPU. We can provide long-term good after sales service for customers. ODM orders Welcome!
Our Advantages
-
-
High Quality
Good quality control System,competitive cost control system.
-
Low MOQ
Large production capacity with lowest MOQ.
-
-
-
Shipping & Packing
- Packing: standard export packing or customized packing
- Shipping Ways:
By express (3-7 days via DHL, UPS, TNT, FEDEX; 5-10 day Via EMS)
By air or sea or combined tranportation
FAQ
Q1: What payment method do you accept?
A1: Trade assurance, T/T, Western Union
Q2: What is the mininum order Quantity(MOQ）?
A2: We can sell one piece for testing.
Q3: When is the lead time of your products?
A3: we have stock, we can provide fast delivery within 2~3 days for 10pcs.
Q4: How about the warranty service?
A4: 3 year for warranty free.
