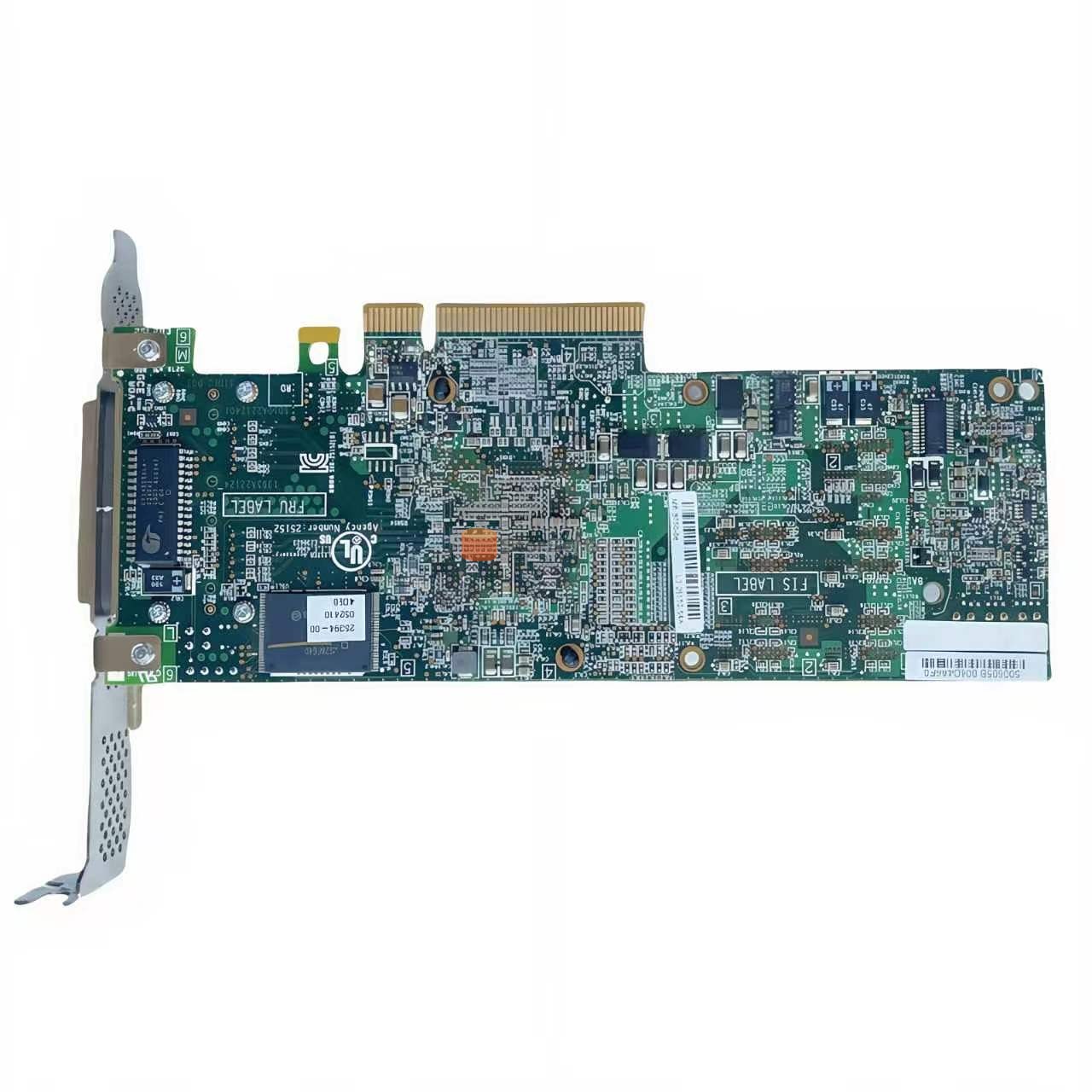

SAS SATA RAID controller 9750-8E LSI00243
Applications
LSI 3ware SATA+SAS RAID controllers provide a new level of reliability, availability, and performance to businesses that are facing storage challenges, particularly in sequential I/O intensive and multi-stream environments. This 3ware controller bolsters high capacity external server storage RAID and non-RAID enclosures and provides a higher standard of data protection and performance with the latest in LSI RAID-on-Chip (ROC) technology. Using the external SAS ports, multiple JBODs can be connected to a server, providing a scalable and affordable solution for growing storage requirements.Offering data transfer rates of up to 6Gb/s per port, the latest generation of 3ware SATA+SAS controllers provide many new features while also ensuring investment protection for existing SATA and SAS implementations. LSI delivers unprecedented power in multi-stream RAID environments where performance, redundancy, and data protection are most important.
Key Features
• Eight external 6Gb/s SATA+SAS ports
• Two Mini SAS external connectors (SFF8088)
• RAID levels 0, 1, 5, 6, 10, 50, and single disk
• LSISAS928 6Gb/s on-chip RAID -800MHz PowerPC
• 512MB 800MHz DDRII cache
Specification
| Model |
9750-8E |
| Adapter Type |
SAS SATA RAID |
| Storage Controller |
LSI00243 |
| Connectors |
2 x SFF-8088 external Mini SAS |
| PCIe Host Interface |
PCIe 2.0 x8 |
| RAID Levels |
0, 1, 5, 6, 10, 50, and single disk |
Form Factor
|
MD2 half height and half length
|
Ports
|
8 |
Lead time
| Quantity (pieces) |
1-10 |
10-60 |
>60 |
| Lead time (days) |
3 |
3-5 |
To be negotiated |
